Breakfree Power Tube Bender, 1/4-7/8" Max OD (NTB7L)

Name: Breakfree Power Tube Bender, 1/4-7/8" Max OD
SKU: NTB7L
Availability: InStock

Breakfree Power Tube Bender, 1/4-7/8″ Max OD

Price range: $1.43 through $231.45

In stock

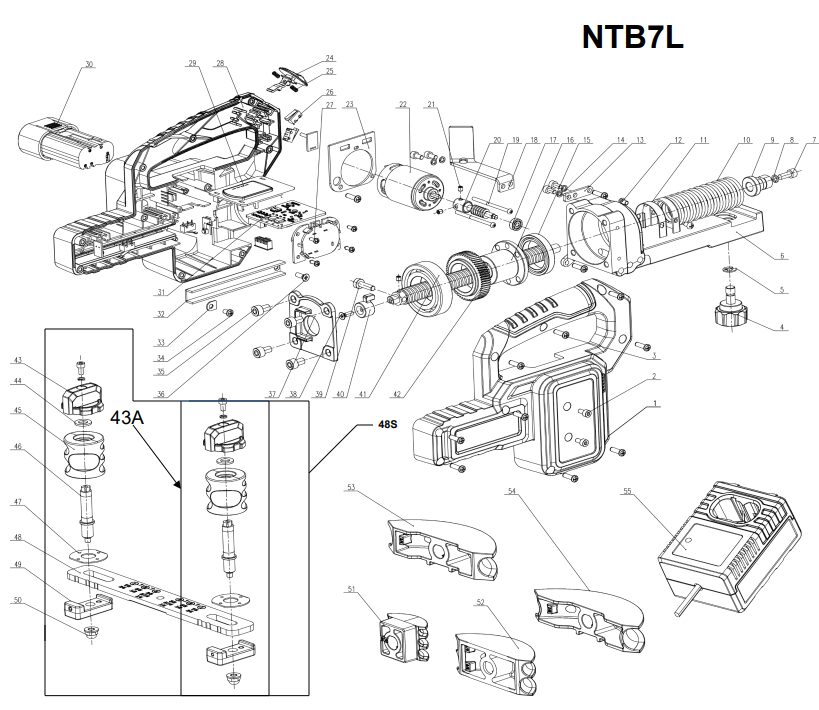

Figure #	SKU	Name	Price	Quantity
1	NTB001	Left shell assembly	$23.22	Quantity Left shell assembly quantity	Sold Out
2	NTB002	Hexagon socket cap screws	$1.43	Quantity Hexagon socket cap screws quantity	Sold Out
3	NTB003	Cross Recessed Pan Head Tapping screws	$1.43	Quantity Cross Recessed Pan Head Tapping screws quantity	Sold Out
4	NTB004	Locking screw assembly	$10.46	Quantity Locking screw assembly quantity	Add
5	NTB005	Split washer	$1.43	Quantity Split washer quantity	Add
6	NTB006	Gear box	$75.75	Quantity Gear box quantity	Sold Out
7	NTB007	Hexagon socket cap screw	$1.43	Quantity Hexagon socket cap screw quantity	Add
8	NTB008	Spring washer	$1.43	Quantity Spring washer quantity	Add
9	NTB009	Mandrel connector	$10.23	Quantity Mandrel connector quantity	Add
10	NTB010	Protective sleeve	$6.26	Quantity Protective sleeve quantity	Add
11	NTB011	Protective sleeve buckle	$2.38	Quantity Protective sleeve buckle quantity	Add
12	NTB012	Cross Recessed Disc Head Screws	$1.43	Quantity Cross Recessed Disc Head Screws quantity	Sold Out
13	NTB013	Junction plate	$1.43	Quantity Junction plate quantity	Add
14	NTB014	Spring washer	$1.43	Quantity Spring washer quantity	Sold Out
15	NTB015	Bearing	$11.02	Quantity Bearing quantity	Sold Out
16	NTB016	Ball screw assembly	$231.45	Quantity Ball screw assembly quantity	Add
17	NTB017	Bearing	$3.17	Quantity Bearing quantity	Sold Out
18	NTB018	Pipe release baffle	$4.60	Quantity Pipe release baffle quantity	Add
19	NTB019	Cross Recessed Pan Head Tapping screws	$1.43	Quantity Cross Recessed Pan Head Tapping screws quantity	Sold Out
20	NTB020	Worm gear	$31.62	Quantity Worm gear quantity	Add
21	NTB021	Hexagon concave end setting screw	$1.43	Quantity Hexagon concave end setting screw quantity	Add
22	NTB022	Motor	$35.42	Quantity Motor quantity	Add
23	NTB023	Motor air duct bulkhead	$1.43	Quantity Motor air duct bulkhead quantity	Sold Out
24	NTB024	Switch push button	$1.43	Quantity Switch push button quantity	Add
25	NTB025	Push button spring	$1.43	Quantity Push button spring quantity	Sold Out
26	NTB026	16P wiring harness	$38.04	Quantity 16P wiring harness quantity	Sold Out
27	NTB027	Cross Recessed Pan Head Tapping screws	$1.43	Quantity Cross Recessed Pan Head Tapping screws quantity	Sold Out
28	NTB028	Right shell assembly	$32.25	Quantity Right shell assembly quantity	Sold Out
29	NTB029	display panel	$1.43	Quantity display panel quantity	Sold Out
31	NTB031	Controller PCB	$114.34	Quantity Controller PCB quantity	Sold Out
32	NTB032	Chute	$2.78	Quantity Chute quantity	Sold Out
33	NTB033	Pressing plate	$1.43	Quantity Pressing plate quantity	Sold Out
34	NTB034	Cross Recessed Pan Head Tapping screws	$1.43	Quantity Cross Recessed Pan Head Tapping screws quantity	Sold Out
35	NTB035	Hexagon socket head screw	$1.43	Quantity Hexagon socket head screw quantity	Sold Out
36	NTB036	Cross Recessed countersunk head tapping screws	$1.43	Quantity Cross Recessed countersunk head tapping screws quantity	Sold Out
37	NTB037	Gearbox end cover	$13.87	Quantity Gearbox end cover quantity	Add
38	NTB038	Cross Recessed Countersunk Head Screws	$1.43	Quantity Cross Recessed Countersunk Head Screws quantity	Sold Out
39	NTB039	Pin assembly	$2.46	Quantity Pin assembly quantity	Sold Out
40	NTB040	Limit switch press plate	$1.43	Quantity Limit switch press plate quantity	Sold Out
41	NTB041	Bearing	$14.43	Quantity Bearing quantity	Sold Out
42	NTB042	worm gear	$3.81	Quantity worm gear quantity	Sold Out
43	NTB043	Knob	$11.18	Quantity Knob quantity	Sold Out
43A	NTB043A	Size Selector Knob Assembly	$27.30	Quantity Size Selector Knob Assembly quantity	Add
44	NTB044	Flat gasket 8	$1.43	Quantity Flat gasket 8 quantity	Sold Out
45	NTB045	Sizing Selector	$20.45	Quantity Sizing Selector quantity	Sold Out
46	NTB046	Rotating wheel shaft	$10.54	Quantity Rotating wheel shaft quantity	Sold Out
47	NTB047	Positioning plate	$1.43	Quantity Positioning plate quantity	Sold Out
48	NTB048	Crossbar	$37.32	Quantity Crossbar quantity	Add
48S	NTB048S	Crossbar Assembly	$91.00	Quantity Crossbar Assembly quantity	Sold Out
49	NTB049	Lock nut assembly	$12.05	Quantity Lock nut assembly quantity	Sold Out
50	NTB050	Hexagon flange cover nuts M6	$1.43	Quantity Hexagon flange cover nuts M6 quantity	Sold Out
51	NTB051	3 in 1 Mandrel	$24.70	Quantity 3 in 1 Mandrel quantity	Add
53	NTB053	3/4 Mandrel	$24.70	Quantity 3/4 Mandrel quantity	Add
54	NTB054	7/8 Mandrel	$24.70	Quantity 7/8 Mandrel quantity	Add
Not Shown	NTB048N	Single Crossbar	$43.55	Quantity Single Crossbar quantity	Add
